The compact 30MM tube design on the Endeavor RS IV 4-16x50 is especially appealing to the mobile hunter or Rimfire shooter. Quality construction and recoil absorbing capability make it perfectly compatible with light weight designed custom centerfire rifles in heavy magnum calibers. Illuminated reticle for twilight applications.
Acclaimed Vanguard quality in a premium European tube design to meet the performance requirements of the aspiring user. Exceptional image quality, multi-layer coatings and optical designs using premium HOYA ED glass. Large fields of view, a rapid focus eyepiece, illuminated reticles and enhanced contrast combine to deliver a positive experience afield to any aspiring shooter.

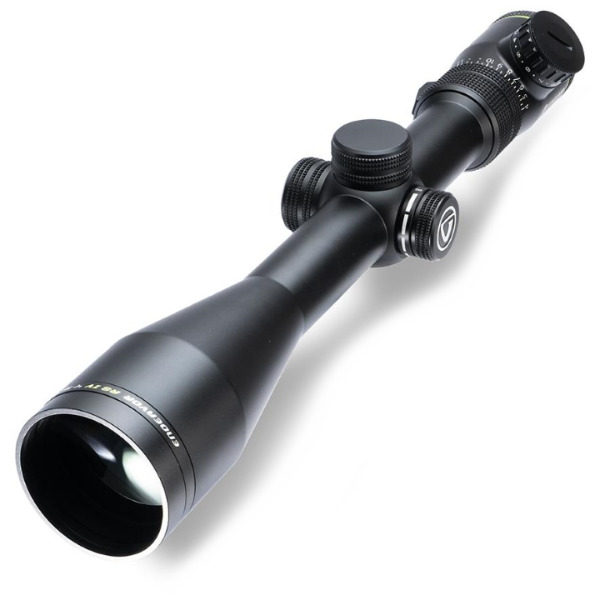

Endeavor RS IV offers acclaimed Vanguard quality in a premium European tube design to meet the performance requirements of the aspiring and professional user. Exceptional image quality is delivered through multilayer anti-reflective coatings for increased light transmission and optical designs using premium HOYA ED glass. Large fields of view, a rapid focus eyepiece, and enhanced contrast combine to deliver a positive experience afield. The single piece 30MM tube is constructed from high grade T6061 aluminum with its hard anti-scratch anodized matte surface deliver a robust and ergonomic platform. The Endeavor RS IV is sealed against dust and moisture, nitrogen purged, and recoil resistant to provide a lifetime of dependability and success. Precise windage and elevation adjustments offer reset capability and accuracy with a locking side parallax system on certain models. The Endeavor RS IV offers illuminated Duplex, German #4 and Dispatch™ ballistic reticles for easy application in low light. Engineered to handle rugged terrain in the most challenging conditions and backed by our Industry Leading Warranty. Vanguard manufactures the Endeavor RS IV in its own factory to ensure the highest quality from start to finish.
Endeavor RS IV 41650D: The high performance long range scope for low light. Designed for hunters who need the ability to reach out over long distance and who often encounter low light situations while afield. Select applications would include the mountains, the open prairie or grasslands or while sitting over a sendero. 30MM tube offers robust construction for precise shot placement. Illuminated multi stage reticle.
- One Piece Solid Aircraft Grade Aluminum Body
- Four Times Zoom Factor
- Premium HOYA ED Glass Provides True Color and Edge to Edge Clarity

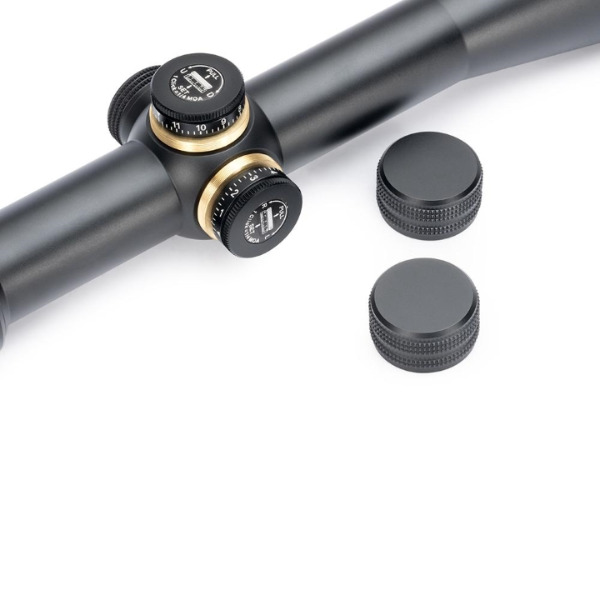

- Precise Windage & Elevation Adjustment with Zero Reset Feature
- Advanced MultiGuard® Coatings for Higher Light Transmittance
- Hard and Durable Anodized Finish
- Rapid Focus Eyepiece

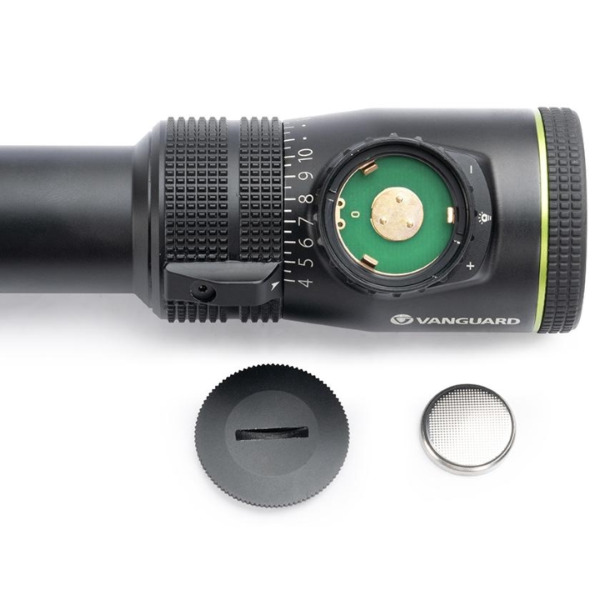

- Illuminated Reticle
|Adjustment per Click (M.O.A / mm@100m)
||1/4 M.O.A / 7mm
||Aircraft Grade Aluminium
|Diameter of objectives
|Elevation Adjustment (M.O.A)
|Field of View @1000 YDS
||49.6 ~ 13.05
|Field view (m/100m) max ~ @ min zoom
||16.53 ~ 4.35
||Fully multi coated
|Parallax Setting (YDS / M)
||100 / 92
||Endeavor RS IV
|Tube Diameter (mm/in)
||30 / 1.18
||9.5° ~ 2.5°
|Windage Adjustment (M.O.A)
